Threaded, not magnetic. If your device takes a cartridge that clicks into place, you want the VOOPOO PnP X DTL Pod Cartridge 5ml rather than this tank.
This page is the direct lung version. VOOPOO make a mouth-to-lung sibling on the same 510 base, and the difference between them is the same as between the two magnetic cartridges.
- Fits
- VOOPOO Drag 5 Mod Kit 177W Dual 18650 and any other 510 box mod
- VOOPOO Drag 4 and Drag M100S
- VOOPOO Argus GT II, Argus XT and Argus MT
- Any TPP-era VOOPOO mod, as a route onto a current coil platform. Does not fit ✕ Any pod mod that takes a magnetic cartridge: the Drag S2, S3, X3 and Argus Pro 2 need the VOOPOO PnP X DTL Pod Cartridge 5ml instead ✕ Devices with no 510 connector
Not sure it is the right one? Message us on WhatsApp with a photo of the pod or cartridge you are replacing rather than of the device, and we will tell you which one it is. The resistance and the capacity are usually printed on the cartridge body or stamped into its base: that marking identifies the part far more reliably than the name of the device it came out of.

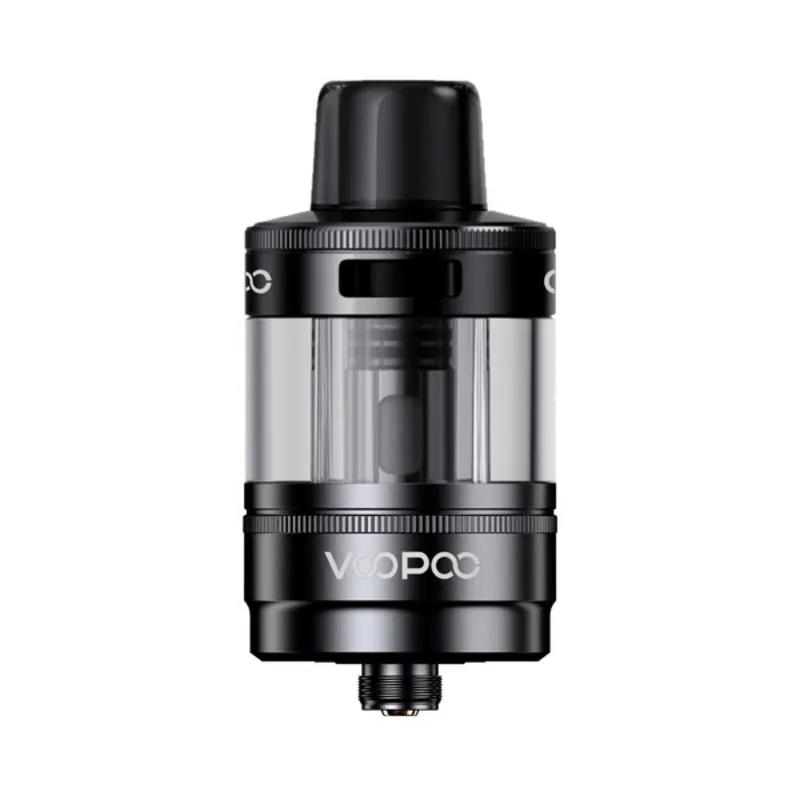

A tank that puts a box mod on the PnP X platform
Most 510 tanks come with their own coil family, which is how a mod owner ends up with three incompatible boxes of coils in a drawer. This one does the opposite: it threads onto any standard mod and runs the same VOOPOO PnP X Replacement Coils as VOOPOO’s current pod mods.
Five millilitres, side filling, and it arrives with a 0.15 ohm coil fitted and a 0.3 ohm spare, so it is ready to use at anywhere from thirty-two to eighty watts. The larger version is the standard one and the one we stock.
Threaded, where the cartridges are magnetic
This is the single most important thing on the page. VOOPOO sell two things called PnP X pods, and they attach in completely different ways. The cartridge is magnetic and drops into a pod mod. This tank has a 510 thread and screws onto a box mod.
The coils inside them are identical. The bases are not, and no adapter bridges the two. A Drag S3 owner who buys this tank has bought a part that cannot attach to their device.
What it turns a mod into
On this catalogue, the obvious pairing is the Drag 5, which is a 510 mod running two 18650 cells at up to a hundred and seventy-seven watts. Fitted with this tank, it becomes a PnP X device with a great deal more power behind the coil than any pod mod can offer.
The migration path off a dead coil platform
There is a second reason to own this tank, and it is the more interesting one. If your mod is fine but its coil family is winding down (a TPP tank on an Argus GT II, say), the mod does not need replacing. The tank does.
Unscrew the old one, screw this on, and the device moves from VOOPOO TPP Replacement Coils to a current platform: seven resistances and a published coil life, instead of four resistances and none. It keeps hardware in service that would otherwise be retired over a consumable, which is a strange reason to lose a working mod.
The VOOPOO UForce-X Tank 5.5ml does the same job with a slightly larger capacity and a slide-top fill, and is worth comparing before you choose.
A second version of this tank exists. VOOPOO make a mouth-to-lung Pod Tank on the identical 510 base, supplied with a 0.6 ohm coil fitted and a 0.3 ohm spare, and it takes a removable 510 drip tip. It is the only way to get a genuinely tight draw out of a box mod on this platform.
Fitting a coil and filling
Coils press in rather than screwing, as they do everywhere on this platform. Wet the cotton, press the coil into the tank base, screw the base back on, and fill through the side port.
Stand for ten minutes before the first draw, and start at forty watts on the supplied 0.15 ohm coil rather than the eighty it is rated for. Working up over the first tank is what gets a coil to its hundred-millilitre rating.
Coil life here is the platform figure
The hundred-millilitre rating VOOPOO gives these coils holds in this tank exactly as it does in a cartridge, because it is a property of the coil rather than of what surrounds it. Twenty refills of five millilitres is the arithmetic.
The tank itself has no published lifespan. Glass and stainless steel outlast plastic comfortably, and the seals are the part that will eventually need attention.
What a mod at eighty watts wants in it
A 70/30 freebase at three milligrams, which sits at the top of the fifty to seventy per cent band, VOOPOO print on the sub-ohm PnP X coils. The pre-mixed Ultimate Juice 120ml bottles and the Doozy 100ml shortfills are the right shelf for a tank this size.
Six milligrams is the sensible ceiling. On a mod that can push a 0.15 ohm coil properly, anything stronger stops being enjoyable within a few puffs.
Nairobi and its neighbouring towns are same day from Vapesoko Nairobi; courier delivery reaches the rest of the country in 1 to 2 business days.
Best for
- Drag 5 owners and anyone with a 510 box mod
- Putting an older mod onto a current coil platform
- Five millilitres with side filling
- All seven PnP X resistances on a threaded tank
- Arriving with two coils already in the box
Specifications
- Specification: This tank (DTL)
- Category: Accessories
- Consumable type: Replacement pods, cartridges and tanks
- Capacity: 5.0ml, or 2.0ml in UK and EU markets
- Connection: 510 thread
- Fill method: Side filling
- Coils accepted: All seven PnP X resistances
- Supplied with: 0.15 ohm fitted, 0.3 ohm spare
- Drip tip: Fixed
- Draw: Direct lung
- Brand: VOOPOO
- Type: 510-threaded tank. Coils press into the base
- Coil platform: PnP X
- Coils it accepts: VOOPOO PnP X Replacement Coils, all seven resistances
- Capacity: 5ml, or 2ml where TPD rules apply
- Connection: 510 thread. This is not a magnetic cartridge
- Supplied with: A 0.15 ohm coil fitted and a 0.3 ohm spare
- Coil life published by VOOPOO: Up to 100ml of e-liquid, as on any PnP X coil
- Who it is for: Adult smokers and vapers, 18+. Not suitable for non-smokers or for anyone who has never used nicotine.
- Delivery: Same day in Nairobi and nearby towns on an early dispatch; typically 1 to 2 business days elsewhere in Kenya
